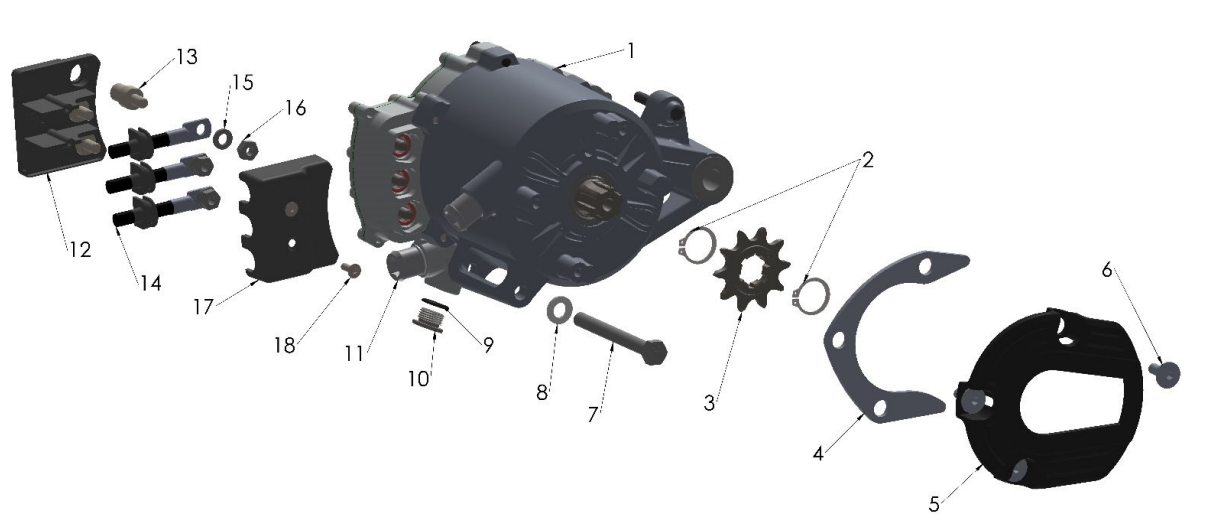

2024 CX5E Parts – Motor System – Sprocket Side
Add to Cart
Add to Cart
| Ref # | Part # | Image | Product | Price | Quantity |
|---|---|---|---|---|---|
| 1 | JACEMU001B | |
R/B JACEMU002 MOTOR ASSEMBLY - BETTER CHAIN GUARD | $2,500.00 | |
| 2 | ECKGSR03 |  |
SNAP RING-OUTPUT- ext 20mm - FOR OUTPUT SHAFT | $2.54 | |
| 3 | PCMU0010 | |
SPROCKET - FRONT - 10T - 415 CHAIN | $22.12 | |
| 4 | JCCEMU005 | |
CASE SAVER - ELECTRIC MOTOR | $22.88 | |
| 5 | JCCEMU008 | |
SPROCKET GUARD - CASE SAVER - 2024 | $24.88 | |
| 6 | HCSP0610BLK |  |
BOLT - SHOULDER - 6MM ALUMINUM - BLACK | $3.20 | |
| 7 | HCBH0880 |  |
M8 X 80 HH ZINC | $6.66 | |
| 8 | HCWF0801 | |
R/B HCWF0802 8MM FLAT WASHER | $0.53 | |
| 9 | ZCMUB014 |  |
O-RING - KICK SHAFT & OIL FILL PLUG | $1.42 | |
| 10 | ECMU0272 |  |
Anodized Oil Fill Plugs | $12.18 | |
| 11 | ECMU0132 |  |
FITTING-COOLANT | $27.68 | |
| 12 | JCCE50036 | |
SPACER - INSULATING - PHASE LEAD | $16.00 | |
| 13 | JCCE50035 | |
STUD - PHASE - RING LUG STYLE | $18.98 | |
| 15 | HCWF0601 |  |
M6 FLAT WASHER DIN 125A ZINC CLEAR | $0.53 | |
| 16 | HCNS0601 |  |
M6 NUT DIN 934 CLASS 8 ZINC CLEAR | $0.53 | |
| 17 | JCCE50044 | |
CAP - SPACER - INSULATING - PHASE LEAD | $14.00 | |
| 18 | HCFH0412 | |
M4 X 12 - FLAT HEAD - ZINC | $2.20 | |
| ACCY | MCMUMF32 | |
ELECTRIC MOTOR FLUID - 32 OZ BOTTLE | $28.88 |
